This is a standalone Network DSR with real time Multiplexer built on most
Reliable Embedded HyRTK Operating System dedicated for digital video recording.
Get
We are making Digital Security Surveillance affordable.
16 Channels Standalone Digital Security Recorder
with Built-in Internet Remote Viewing and full function remote control
What's make our DSR better than others?
16 Channels Standalone Network Digital Security Recorder "So many people are selling one Channel with no Network"
+
Built-in "TCP/IP"
Ethernet Connection "Others don't because they want to cut cost."
+
Built-in live display 480 fps Multiplexer with loopback and 60 field per second recording
"Others use 30 or 60fps "NON Real time Quad" because they want to cut cost."
FAQ: Unlike a VCR, It doesn't matter which camera(s) you
are watching live,
all 16 Channels camera are still recording.
So many ways to display the cameras on your TV, Single, Picture in Picture, 4, 9 Cameras, 13 and 16 Cameras.
+
Two Built-in IDE Harddrive Slots, just plug in the IDE
drive, system will AUTO DETECT, no need to format nor setup software. you
can use 2 harddrives,
10, 20 40, 80 120, 160, 200, 250GB each "Others have one slot and only support up to 120GB
because they want
to cut cost using outdated technology."
+
Professional Shuttle Control for playback speed, direction and frame.
+
Built-in state of the art Motion Detection Recording Technology works with any camera. "Others don't because they want to cut cost."
+
Advanced Motion Alert feature with Relay output
+
MJPEG Hardware compression "Others use software compression
because they want to cut cost.
+
Full function Remote Control Included. "Others don't
because they want to cut cost."
+
Alarm inputs/outputs "Others don't because they want to cut
cost."
+
High speed playback, Slow motion playback. Play backward, play forward, instant playback, 2X Digital zoom, Live
picture freeze and MORE
DSR SB-005 Version 2.4
It's brand new with one year warranty. Just send the unit back to us, we will ship you the replacement within 2
days!!!
Quality machine, Excellent Features, Best price on the market.
This digital recorder has all the possible features. It
has built in Quad/Multiplexer, Motion Detection, Network Remote Viewing, Alarm
input/output, 2 Internal Hard-drive Bays which can hold up to 2 x 300GB IDE
HARDDISK for total of 600GB, of course you can use 40, 80,120,160,250GB
hard-drive, Optional External Storage allow you add another 4 hard-drive.
"SUPER" video quality.
You can watch your business or home via Internet with
included remote viewing software. This unit has motion detection recording,
which means it will start recording only when the unit sense motion. You can
hook up alarm sensors and siren to the system, full function remote is also
included. This system is brand new with firmware v.2.42 and 5Amp
Switching 100 -240V Power supply not the old version with 4.5Amp.
I am using this unit at my own home and business, it's a
compact digital unit which replace all those expensive multiplexer, VCR, Video
Server, Alarm system.
All you need is plug in the cameras and the Video out to your
TV's Video input. If you know how to hookup a VCR, you can hook this up.
If you know how to use a VCR, you should able to operate this unit. Unlike PC
based Recorder, if you don't worry about virus inflection, Windows updates,
Crashing Operating System.
This standalone unit is your best choice for digital
recording.

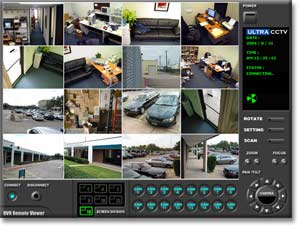

This is how the remote viewing client software looks like, this software is
the most popular software on the market. All A-logic DSRs come with this
software. A-logic provides the software free of charge, we give you the
factory made CD free of charge. Some sellers are selling the software
separately.
This is an example how the remote software look like, the software can
display 1,4,9 and 16 cameras at anytime with one click.
This is the motion detection screen, by default it detects everything on the screen and start recording, you can set
the area where you want to ignore. The
recorder record/display in FULLC
O
L
O
R,
the motion detection setup is in green/pink color for easy viewing.
Features:
-
Embedded HyRTK Operating System
-
JPEG Compression Format
-
Resolution:720x480(Recording),720x480(Display)
-
Recording Mode Selectable: Motion Detect, Manual, Continuous,
Alarm, Schedule
-
2 Internal Hard-drive Bay Support
up to 2 x IDE
Hard-drive.
-
16 Channels Video Input
-
16 Channels Video Loop Output
-
2 Channels Audio Inputs
-
2 Channels Audio Outputs
-
2 Video TV/Monitor Output BNC "Can be convert to RCA" and
S-Video "for TV with S-video"
-
1 Video Output for Sequence display
-
Recording Type: Quad/Multiplexer
-
FPS:60fps Recording, 480fps
display
-
Time-Lapse Recording Support
-
Full Function IR Remote Control
-
RS-485 for Remote Controller
-
Alarm In/Out Support
-
Password Protection
-
External Hard Disk Bay (Optional)
-
10/100 LAN Port for Remote
Viewing via TCP/IP
-
Remote Viewing Software Included, Live Viewing Save One
Image, Printing Image.
-
Dimension 19" Rack Size
|
